Product code - 440022
PLEASE NOTE WHEELS ARE SUITABLE FOR 700C ROAD BIKES WITH DROPPED HANDLEBARS & USING RIM BRAKES ONLY.

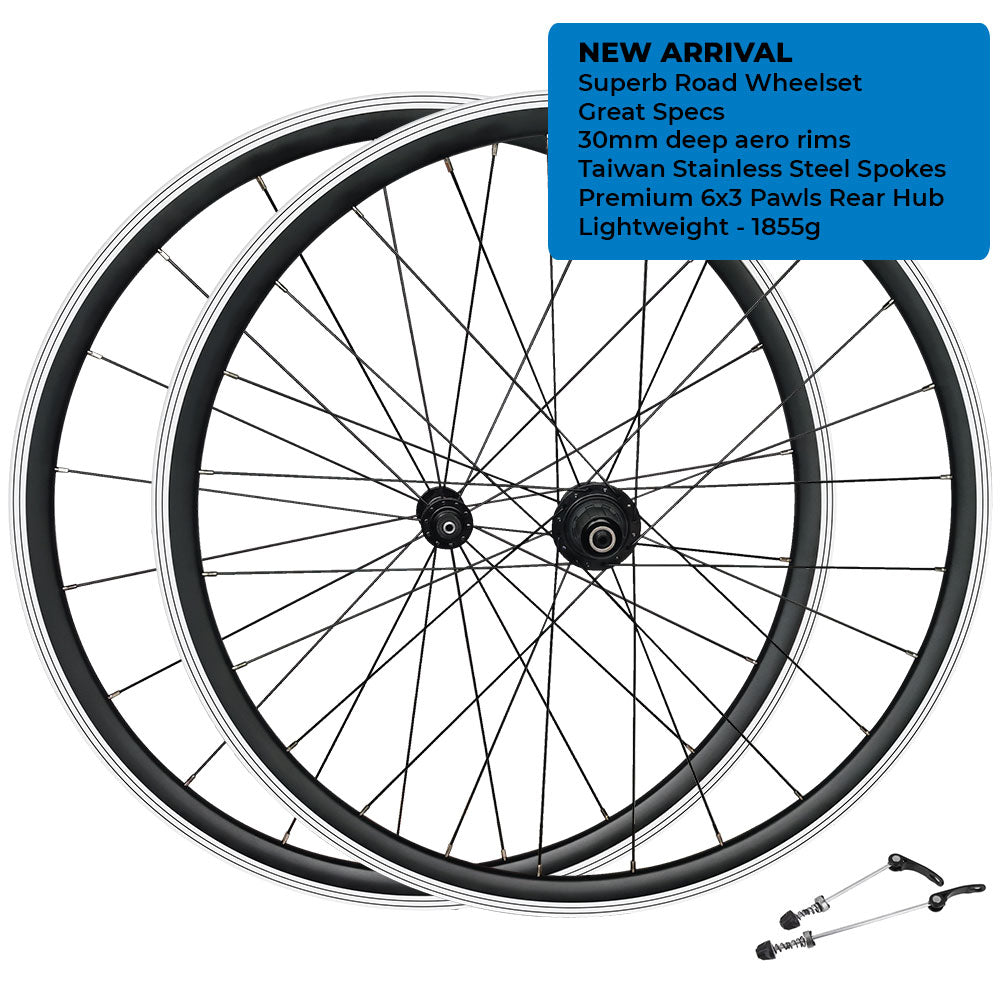

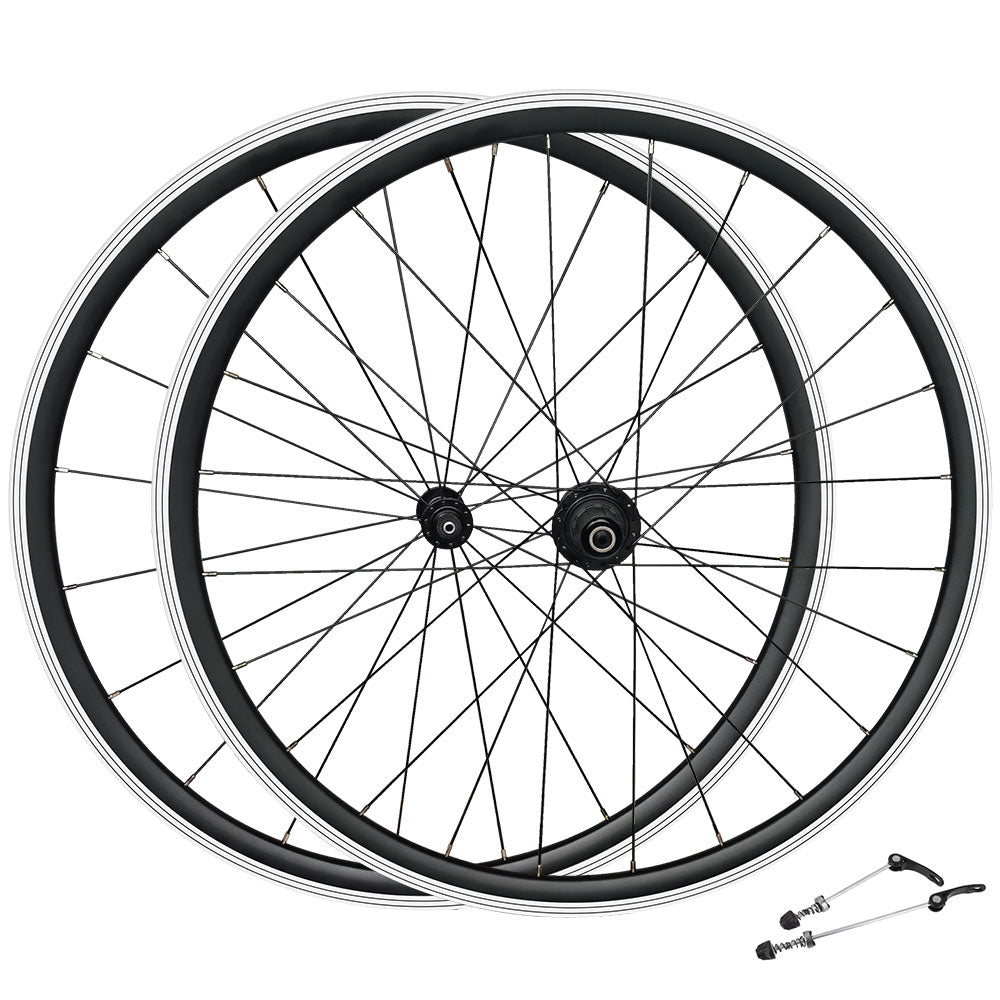

700c (ETRTO 622x14) road wheelset
Precision 100% hand built wheels

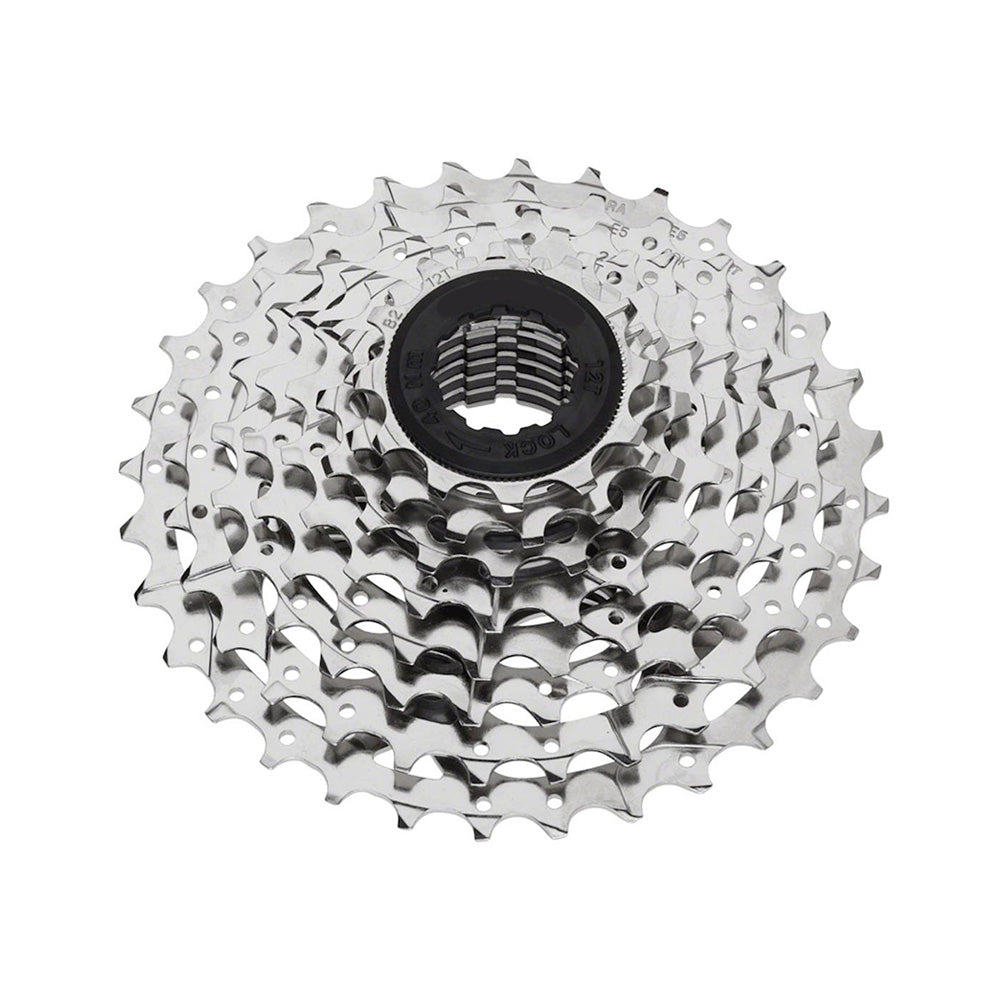

Compatible with 7-11 speed HG cassettes (Spacers are supplied for use of 7-10 speed cassettes)
Suggested maximum system weight of 110kg (total weight of fully kitted up rider, bike and luggage)
Wheelset weight – 1855g

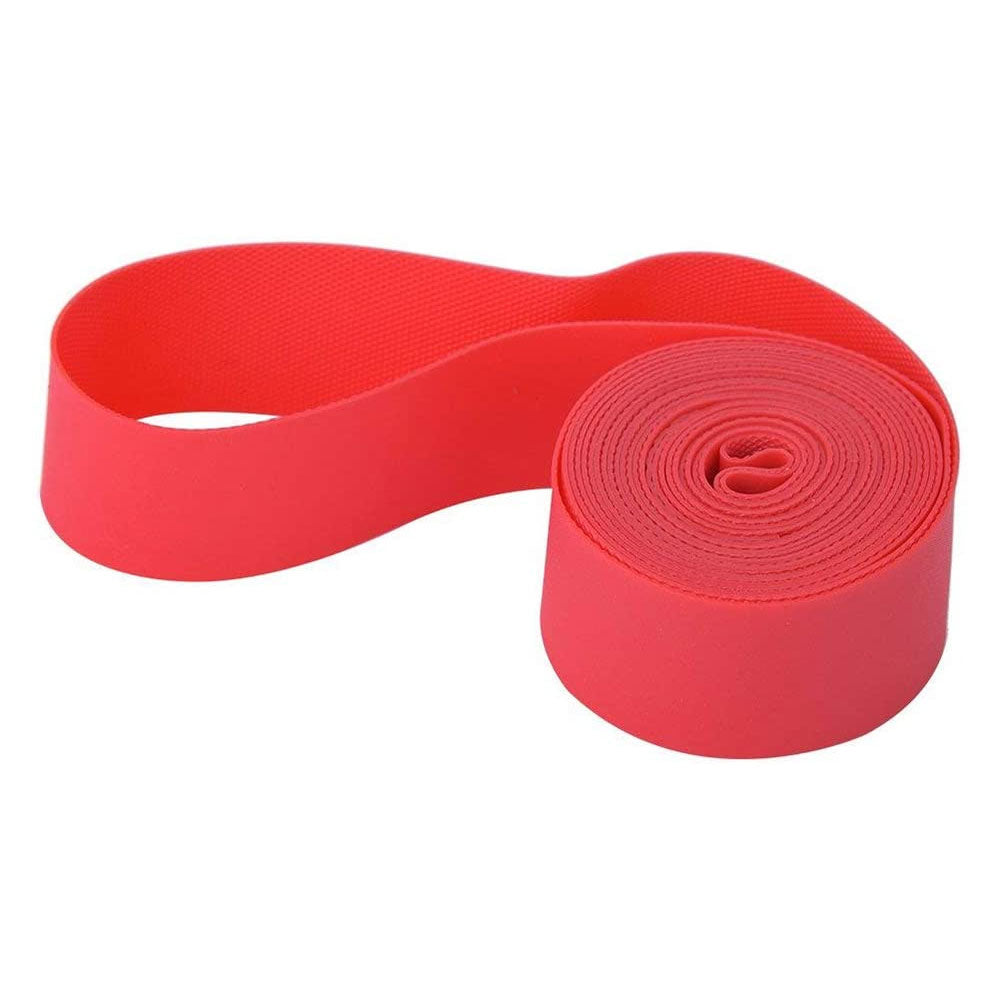

Supplied with quick release skewers & rim tapes
Suitable for rim brakes only
Rims
Double wall 6061-T6 alloy rims
30mm deep aero rim
14mm inner rim width supports 23-28mm clincher tyres
CNC machined sidewalls with wearline indicator
Presta valve holes
Hubs
High quality sealed bearings hubs
Front hub 2 sealed bearings, rear hub 4 sealed bearings
Smooth NBK precision bearings from Taiwan
Sealed cartridge replaceable units
60 points of freehub engagement (6-degree engagement), 6x3 pawls (each pawl has 3 teeth) for quick engagement and durability
Front axle size - quick release 9x100mm
Rear axle size - quick release 10x130mm

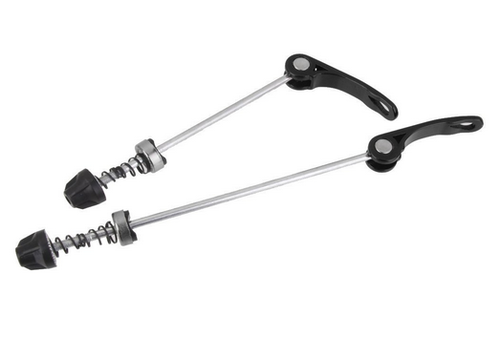

Supplied with quick release skewers
Spokes
High quality stainless steel spokes from Taiwan
20 front spokes radial lacing
24 rear spokes 2:1 Two-to-One spoke ratio lacing (8 spoke radial lacing on non drive side, 16 spoke 3x lacing on drive side)
Black stainless treatment
Fulcrum’s 2:1 Two-to-One Spoke Ratio is a patented wheel-building technology that increases the number of spokes in the most highly stressed sections of a bicycle wheel. By doubling the spokes in critical zones, the system improves efficiency, durability, and stability.
Power Transfer
By placing twice as many spokes where torque is highest, two spokes can share the workload normally carried by one. This improves power transfer from rider to wheel and reduces energy loss under load.Spoke Tension
The 2:1 layout helps equalize tension between the drive-side and non-drive-side spokes. Balanced tension enhances wheel stability and reduces the tendency for wheels to go out of true.Fatigue Life
More uniform spoke tension and reduced torsional stress increase the fatigue life of the rim, hub, and spokes. The wheel structure maintains its integrity longer under repeated cycling forces.Slackening and Torsion Control
Doubling spokes in key areas limits spoke slackening and minimizes torsion, helping the wheel stay responsive and stiff during acceleration and cornering.Engineering Insight
Fulcrum developed the 2:1 system after extensive daily wheel testing revealed significant differences in the forces acting on each side of a wheel. The front and rear wheels also face different stress profiles:
Front wheels must remain stable under braking loads.Rear wheels must counteract the high torque applied on the chain side.By tailoring spoke count to these asymmetric loads, the 2:1 system maximizes performance and reliability.
