27.5” 650b MTB / E-Bike Rear Wheel – 6-Bolt Disc – 12×148 Boost Thru Axle – 30mm Rim – Tubeless Compatible – Performance Hub – HG / XD / Microspline – 8–12 Speed

ETRTO 584×30 • Pillar PSR spokes • Super high-strength 4D rim

Availability: In Stock
Product Code: 775548
From £218.45
From
£257.00
£218.45
-15%
You save £38.55
Almost gone - only 4 left
Compatibility Check? Ask An Expert
Description

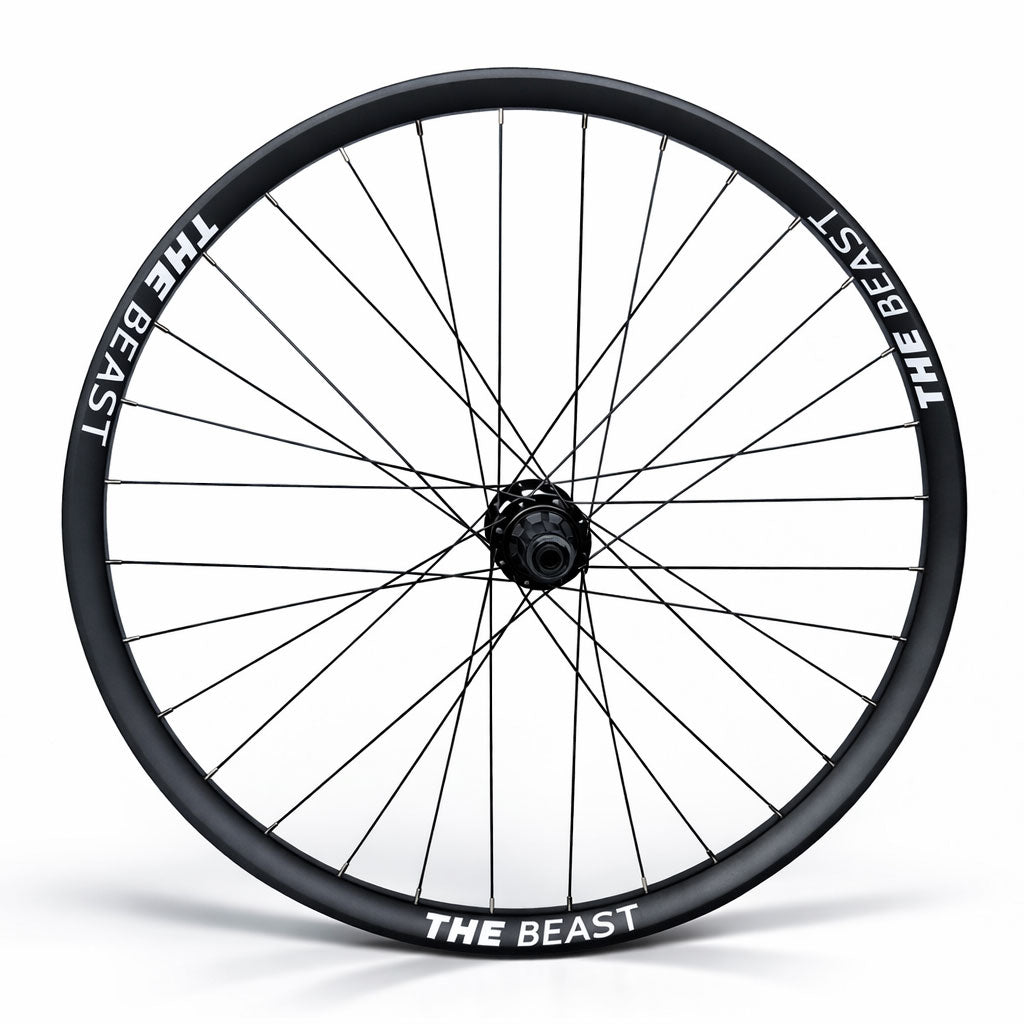

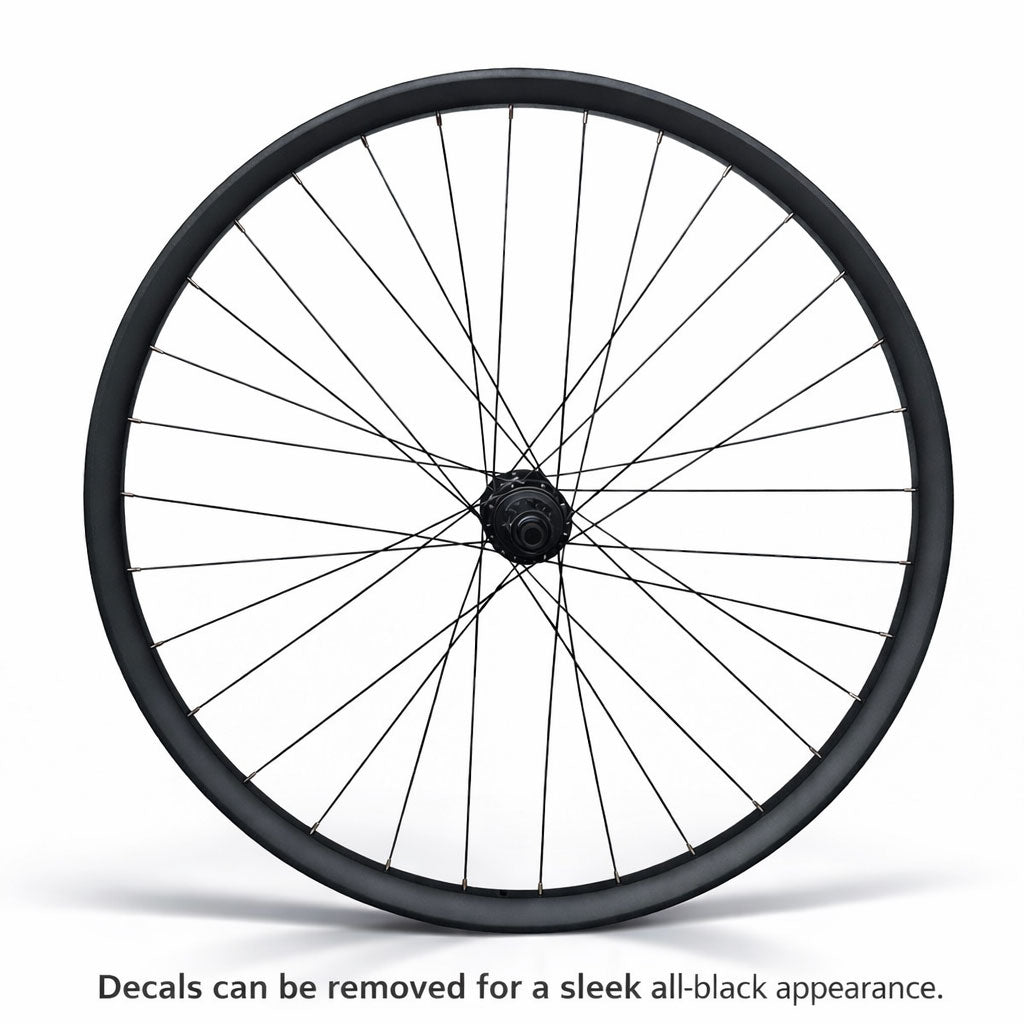

High quality Mountain E-bike specific Boost REAR wheel
Wheel Size - 27.5" 650b (ETRTO 584x30)
Precision 100% hand built wheel
Choice of HG Freehub, Shimano Microspline 12 speed version or Sram XD 11/12 speed version
Suggested maximum system weight of 135kg (total weight of fully kitted up rider, bike and luggage)
Recommended tyre width of 2.2”-2.8”
Wheel weight – 1165g
Please note the thru axle maxles are not supplied as they are specific to your frame & fork. If you are unsure of anything on this listing, please contact us and we will respond promptly.

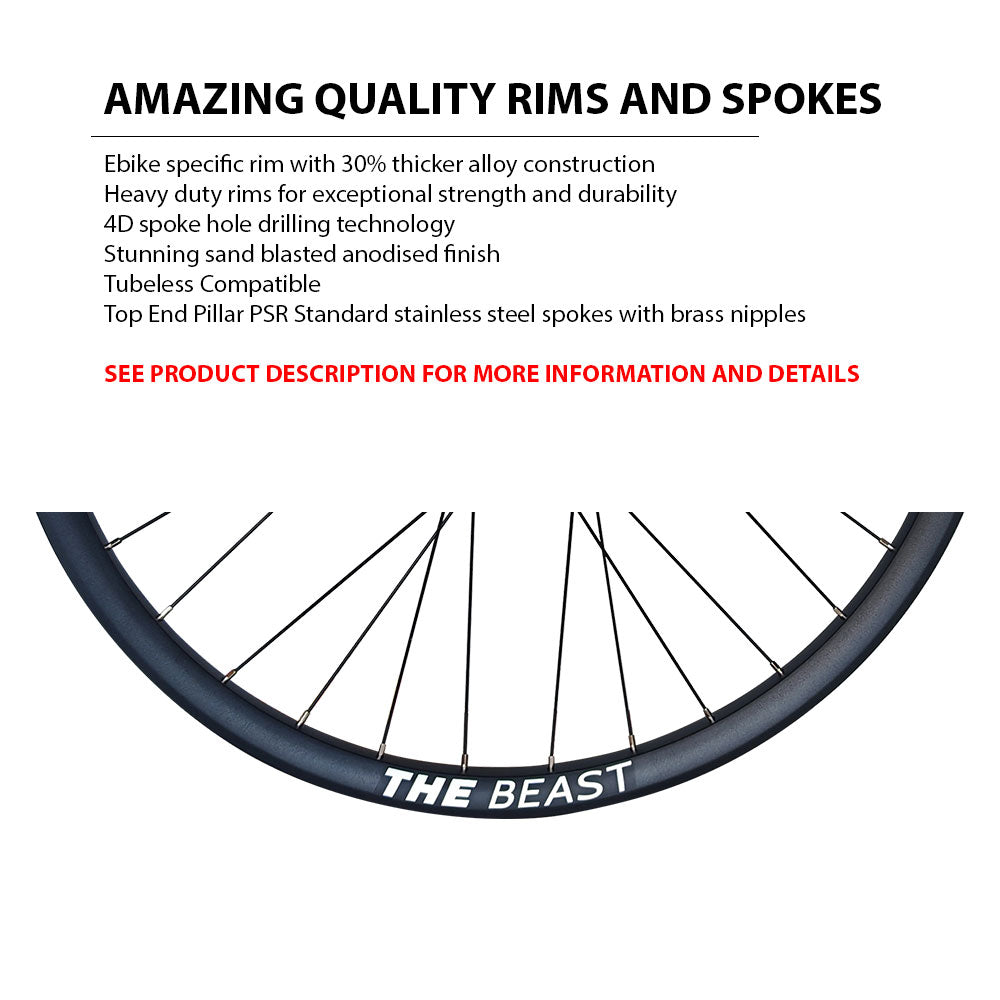

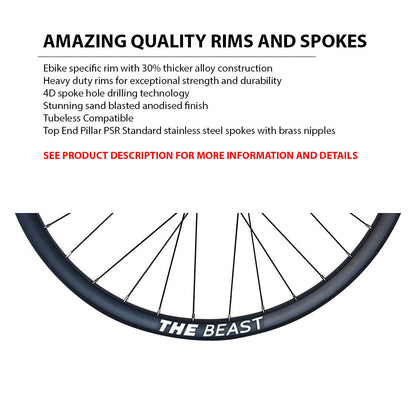

RIM
Ebike specific with 30% thicker alloy construction (both rim bed & sidewalls) for maximum strength & durability
Sand blasted anodised finish
High precision technology, high strength sleeved
6069-T6 aluminum alloy (69% more tensile strength than standard 6061-T6 alloy)
24 deep with a 30mm internal rim width (deeper rim & use of shorter spokes make for a stronger & stiffer wheel)
4D drilling ensures spoke holes are drilled at precise angles thus allowing the spokes and nipples to form a straight line as much as possible, therefore enhancing wheels performance and greatly reducing the chances of spokes breaking, even at high tension
Clincher / Tubeless Compatible (can be run either with standard clinchers or road tubeless tyres)
Presta valve holes

HUB
Premium quality Taiwan sealed bearings
Rear hub 12x148mm spacing with 4 sealed bearings
Super smooth fast rolling S&S precision bearings from Taiwan
Sealed cartridge replaceable units
Rear Cromo steel axle for maximum stiffness & durability

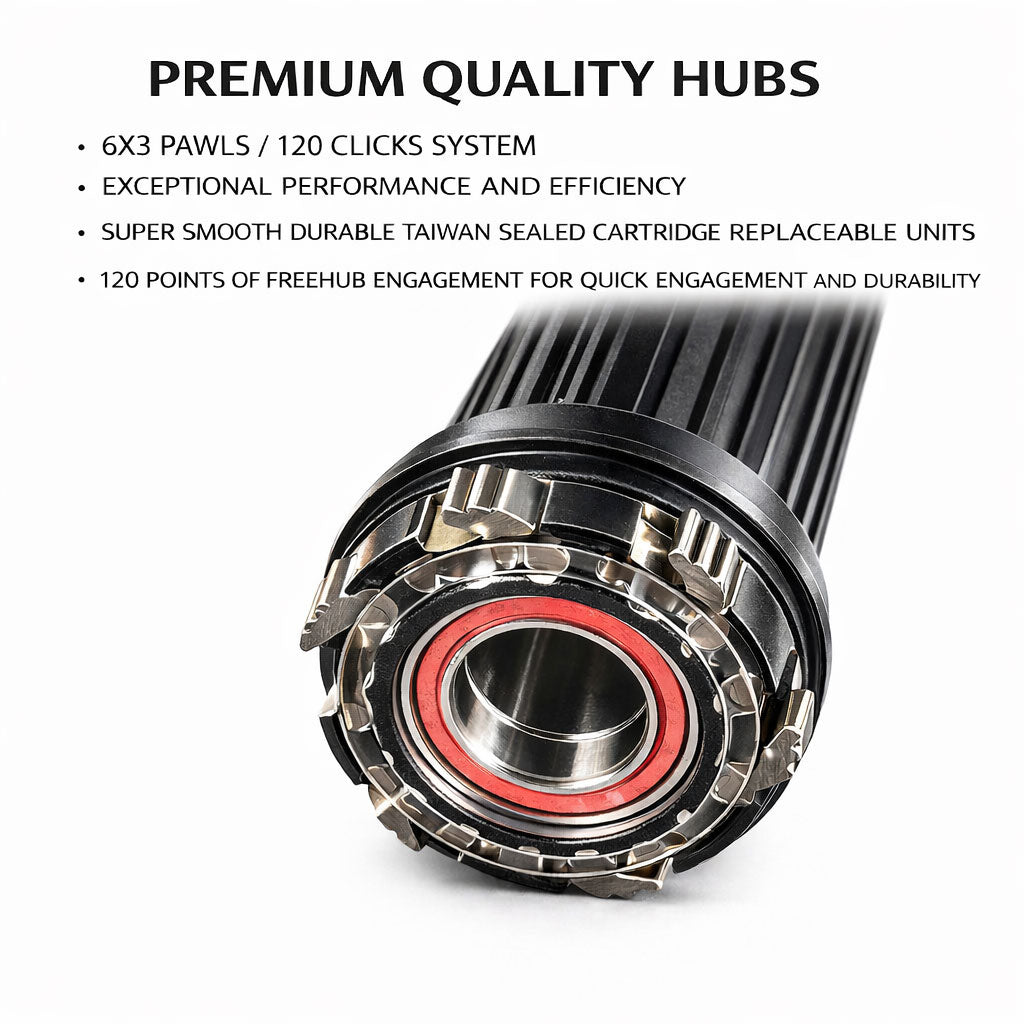

120 points of freehub engagement (3-degree engagement),  6x3 pawls (each pawl has 3 teeth) for quick engagement and durability

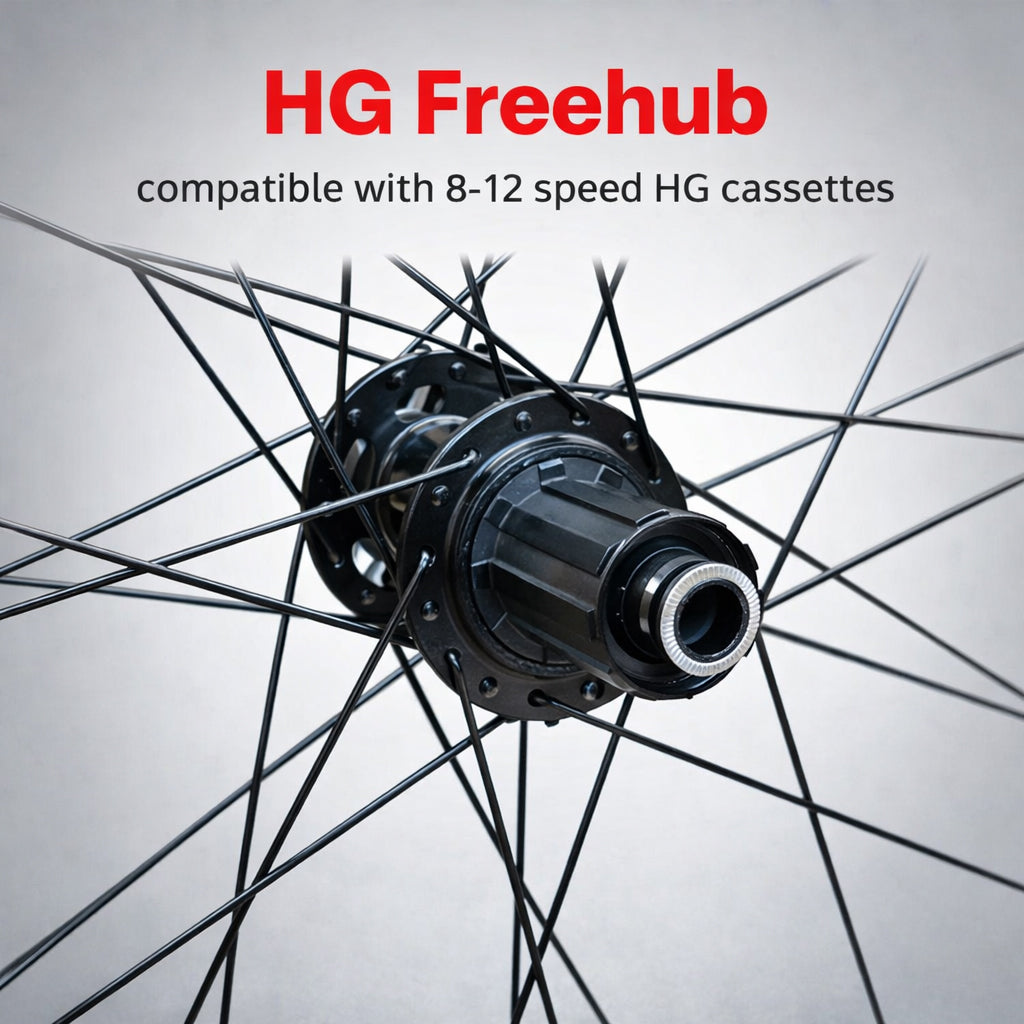

HG freehub – Compatible with HG-standard 8–12 speed MTB cassettes, including Shimano and SRAM HG-type cassettes

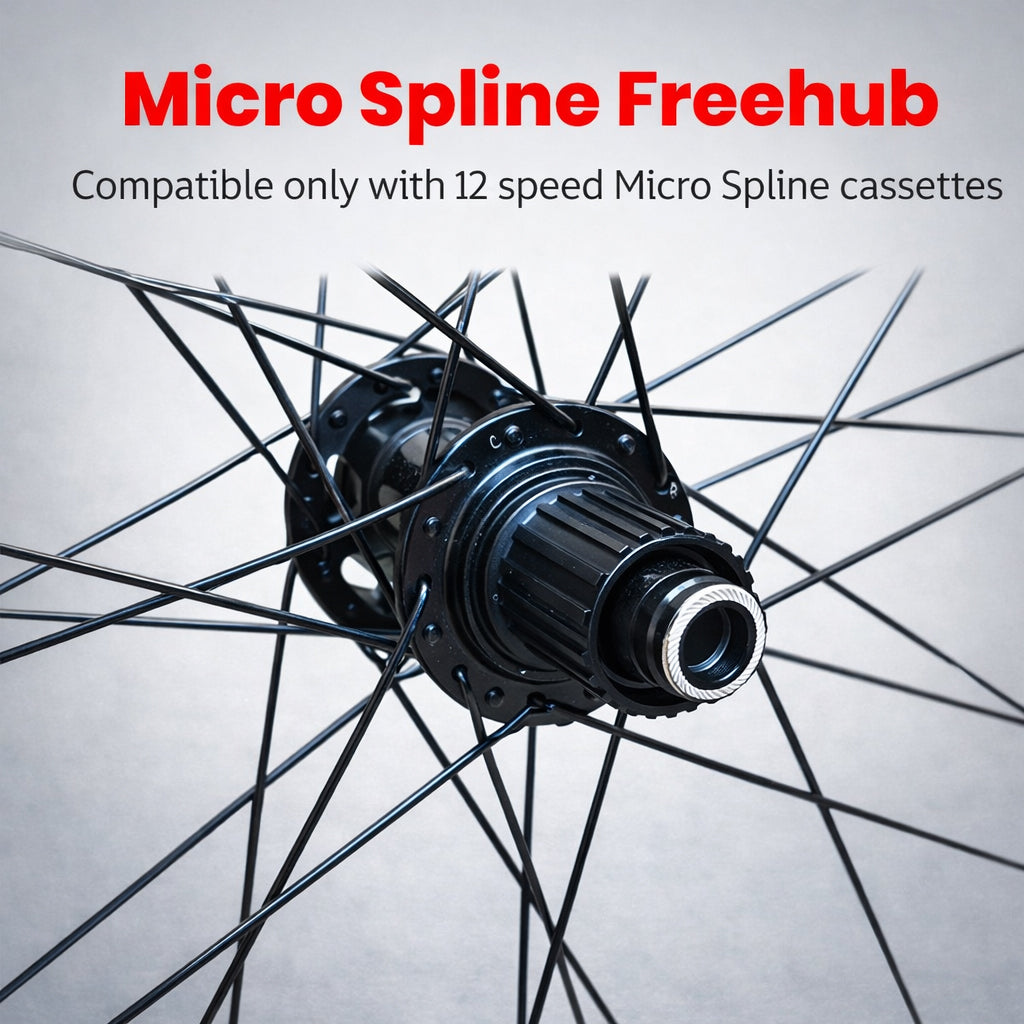

Microspline freehub – Compatible with Shimano Micro Spline–standard 12-speed MTB cassettes

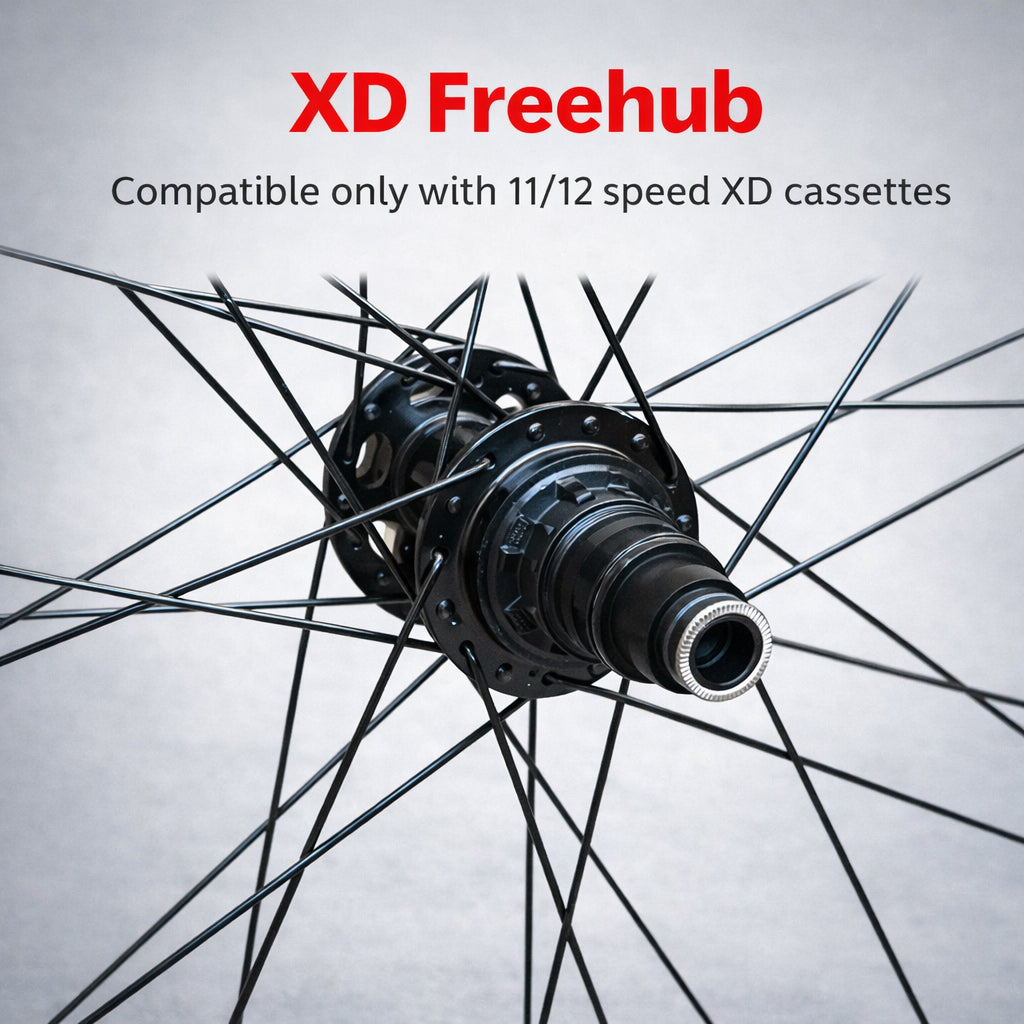

XD freehub – Compatible with SRAM XD–standard 11/12-speed MTB cassettes (including SRAM and other XD-compatible brands)

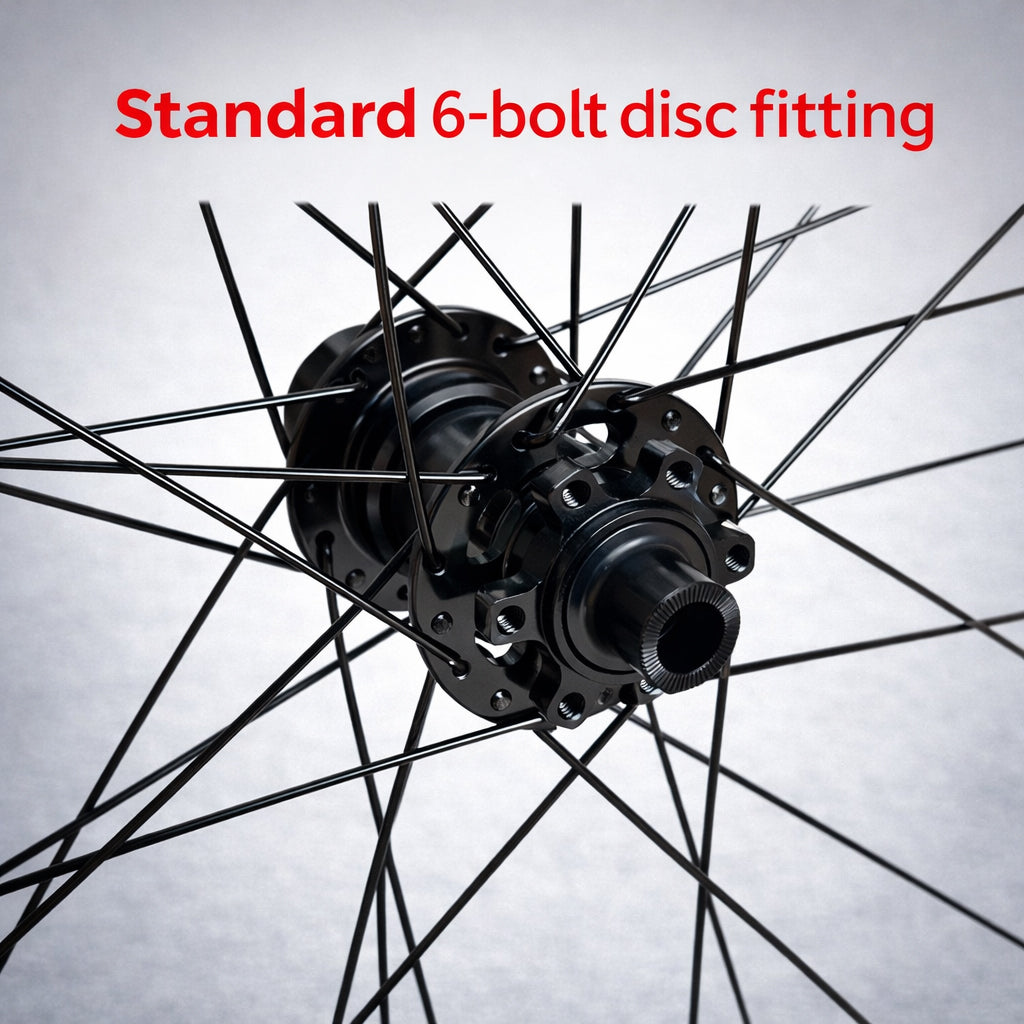

6-bolt disc brake mount

SPOKES
Pillar PSR standard (2.2 mm at the head for the patented Pillar Spoke Re-enforcement)
The Pillar Spoke Reinforcement (PSR) puts more material at the spoke head, just before the J-Bend to prevent failure in this stress area
Pillar PSR patented spokes are four times stronger than standard spokes with a breaking strength of 330KGF
Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
Black stainless treatment
32 rear spoke count, in a 3 cross lacing pattern paired with brass nipples
J-bend spokes allows for easy sourcing and replacement
